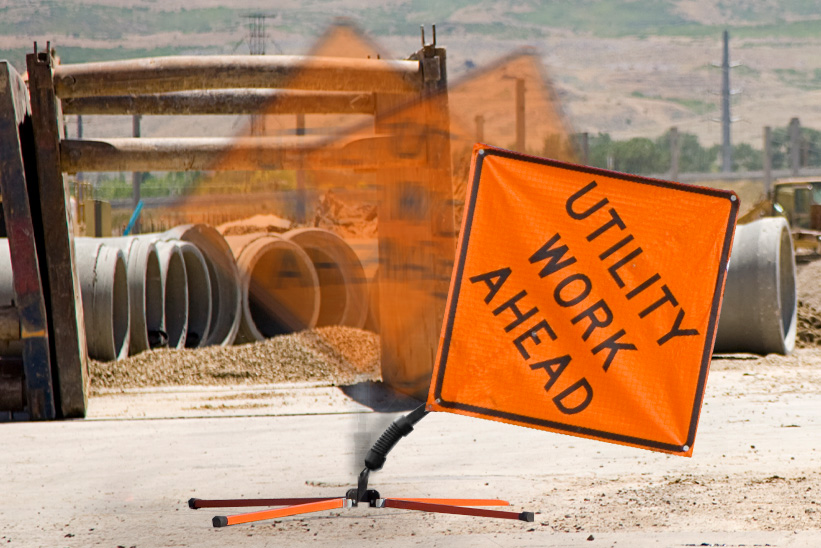

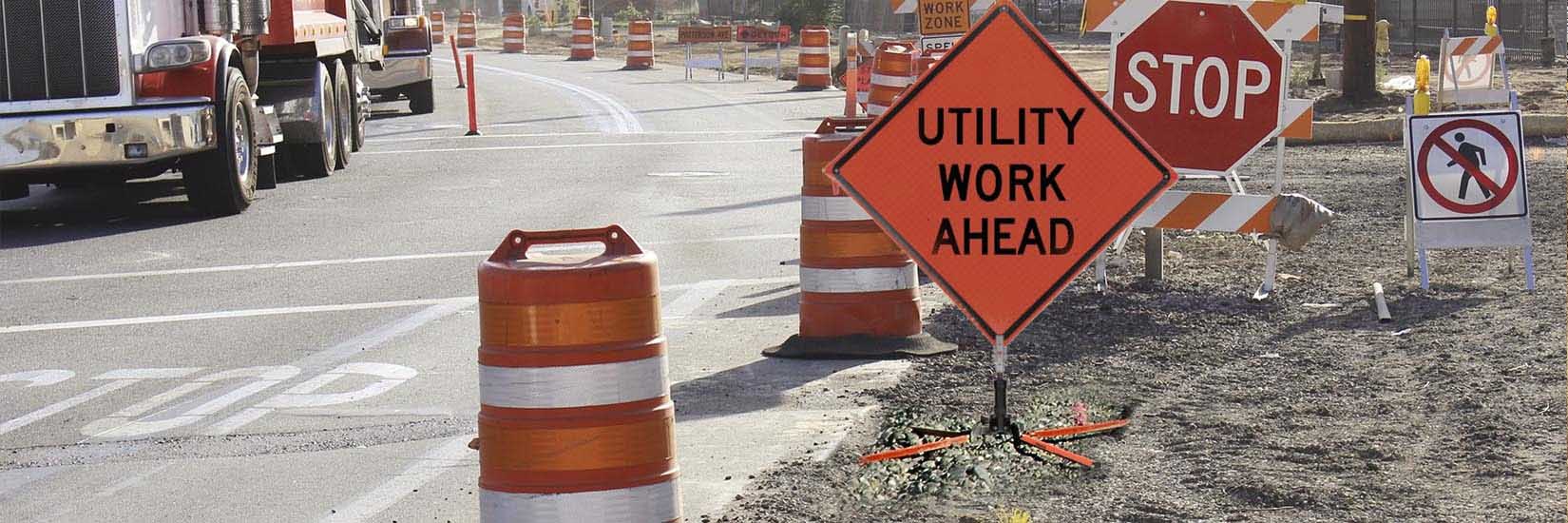

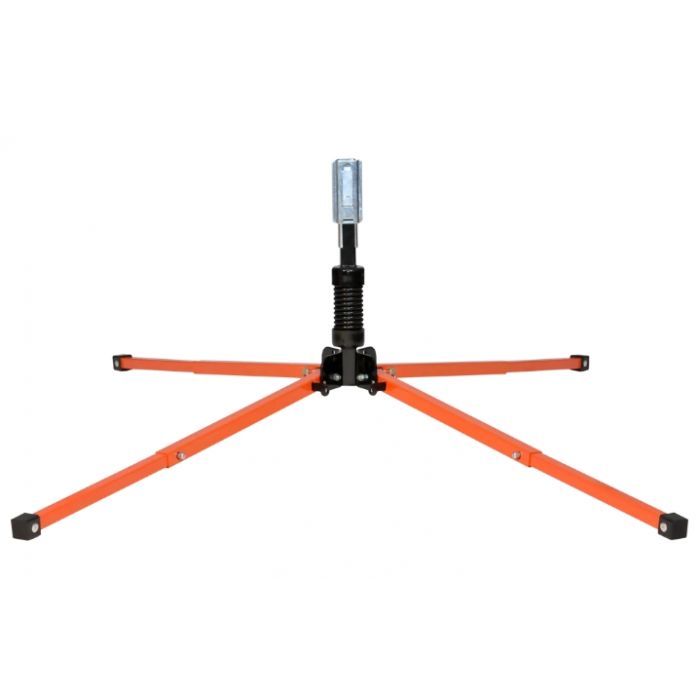

Securely display signs on highway projects, construction sites, maintenance areas, and more. SONCO’s sign stand delivers safety, visibility and technology.

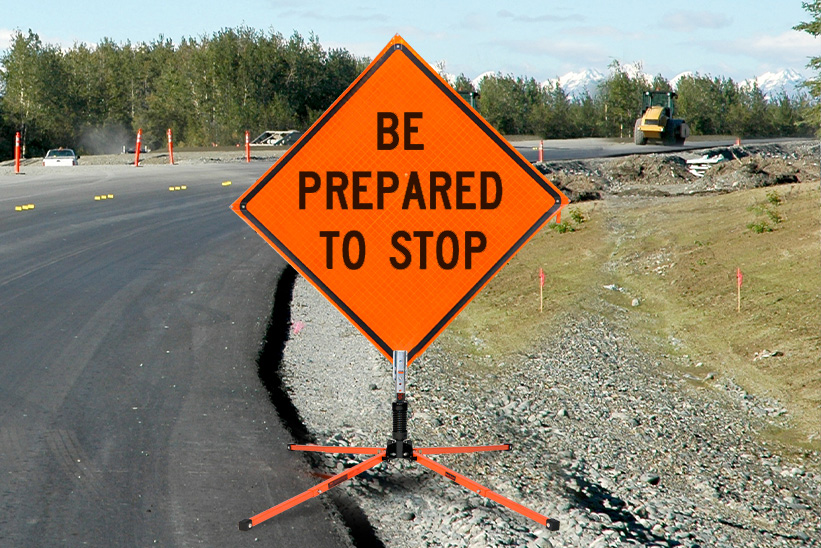

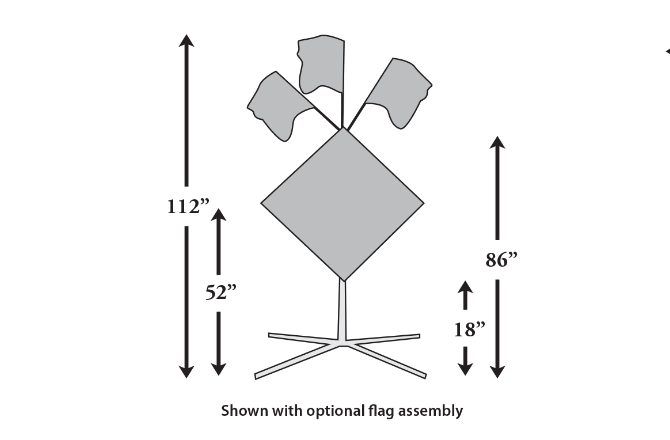

Bright orange, powder coated legs allow the SZ-412-S sign stand to be seen from highways to city sidewalks. And the stand holds roll-up signs 18” above the ground for maximum visibility. This height meets the minimum height requirement set by the MUTCD.
Readily available replacement parts and simple nut and bolt construction allow for fast repairs for worn or damaged parts. Component parts can be replaced easily in the field, using simple hand tools!
The SZ-412-S’s new breakaway base is the first of its kind. It has been designed, if impacted, to rotate 90 degrees to the ground causing no damage to the undercarriage of the impacting vehicle.
Lightweight and compact for ease i0n
storage design only 23 lbs
Single spring design
Both pull pin and kick release
of legs for quick set up
Powder-coated and zinc plated for
maximum corrosion resistance
NCHRP-350 Certified
MUTCD Compliant

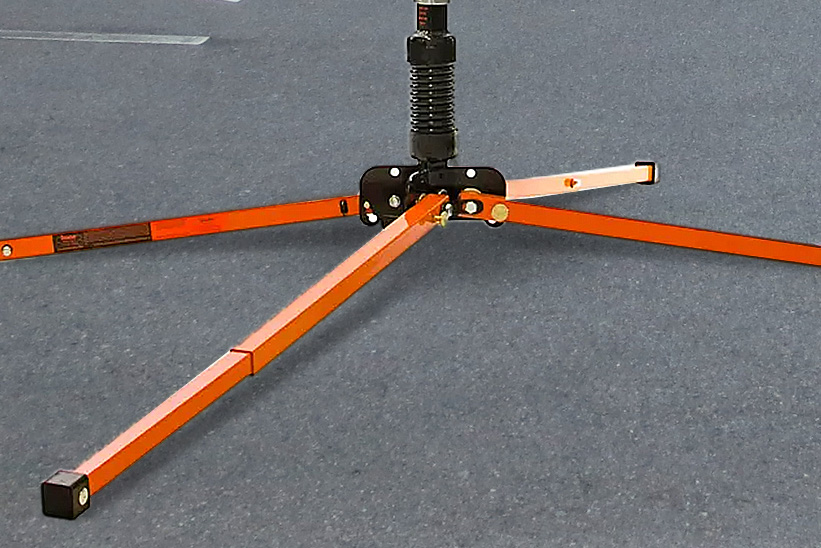

Bright orange powder-coated legs are independently adjustable for uneven surfaces. When using larger safety signs, get maximum wind resistance by ensuring all four legs are fully telescoped and locked down.
1. Extend telescoping legs until locked in place.
2. Release leg lock mechanism and lower legs to ground.
3. Lift up on center upright until legs lock in place.
4. Insert panel into upright holder until spring button snaps in place.
1. Depress spring button and remove panel.
2. Release leg lock mechanism and raise legs.
3. Depress spring buttons and telescope legs.

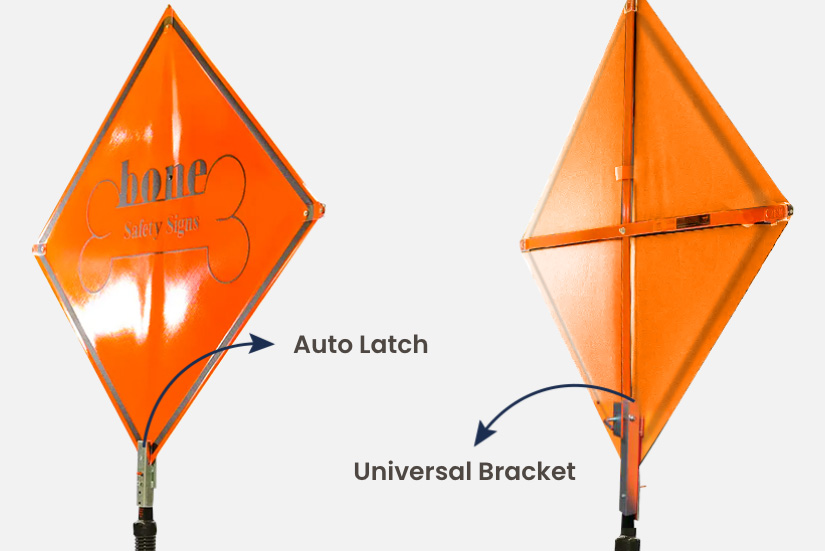

If you are using a Bone Safety manufactured sign, then all you will need is the Auto Latch system that comes with the stand. If you are using another manufacturer’s sign, then you will need to choose the Universal Bracket option.
Traffic Signs And Safety at Your Work Zone | 7 Expert Tips |
The Safety Standards for Signs, Signals, and Barricades as required by the Occupational Safety and Health Administration (OSHA) offers extensively detailed guidance on best practice for traffic signs and safety at work zones. |

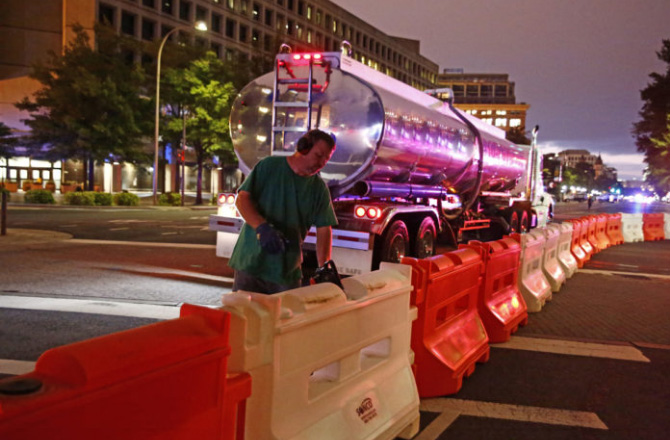

Road Safety Equipment Minimizes Traffic Hazards | SONCO |
SONCO Road Safety Equipment Saves Lives Mark Upcoming Hazards With Barricades, Flares & More. |
Weight | 23.000000 |
---|---|
Height | 24 in |
Teste Available Upload Later Image | No |
Certifications | NCHRP-350 |

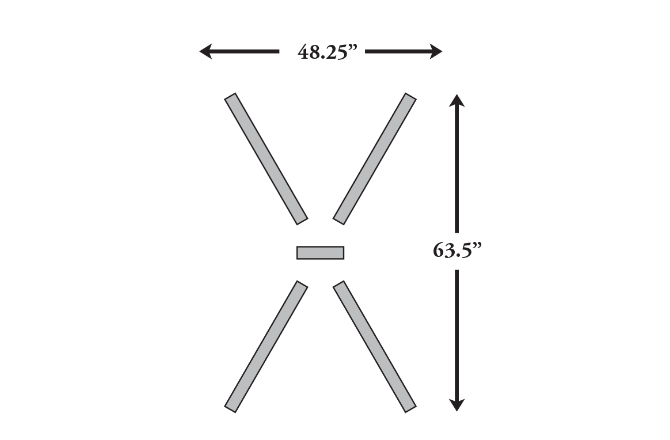

Dimensions | 7”x 11.25”x 58” |
Compliance | MUTCD |
Storage | 75 cubic ft. |
Certifications | MUTCD; NCHRP-350 |
Pallet Quantity | 640 |
