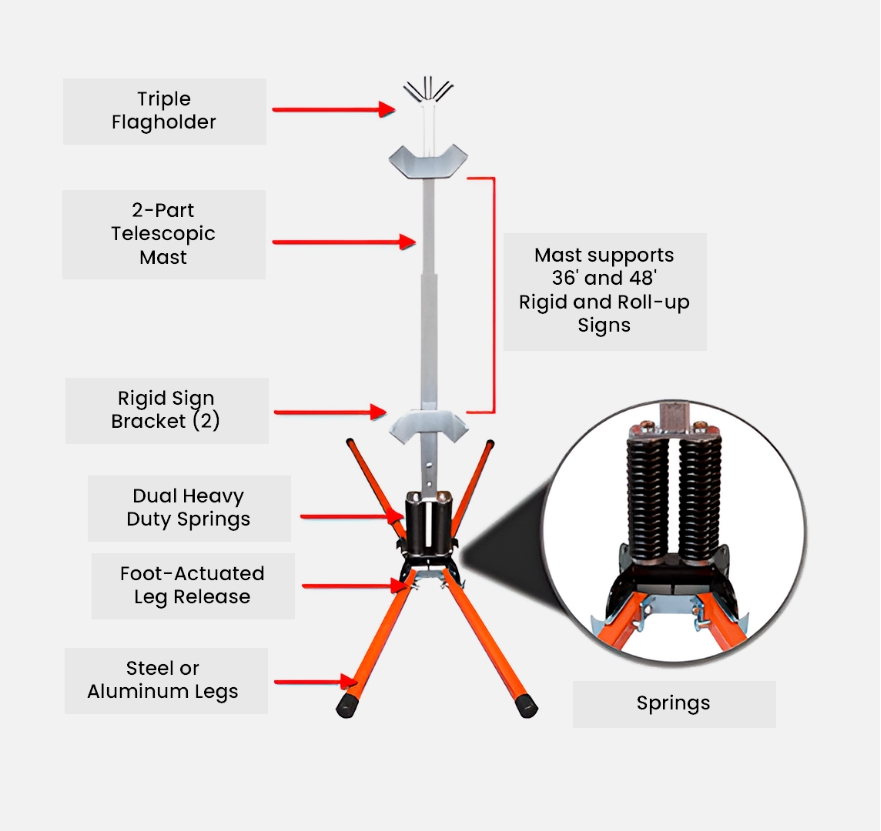

Dual coil springs contribute to traffic sign stand’s wind resistance while helping to reduce wear. Simple steel construction with high-visibility orange powder coating for extra durability in all environmental conditions.
Crash Test Proven Dual Breakaway System is the first of its kind. The revolutionary breakaway base can be hit from any direction.
Outdoor UV powder-coated and
zinc plated for maximum
corrosion resistance
NCHRP-350 Certified
MUTCD Compliant
Both pull pin and kick release
of legs for quick set up
Weights only 37 lbs when rigid
mast and both sign brackets
are attached

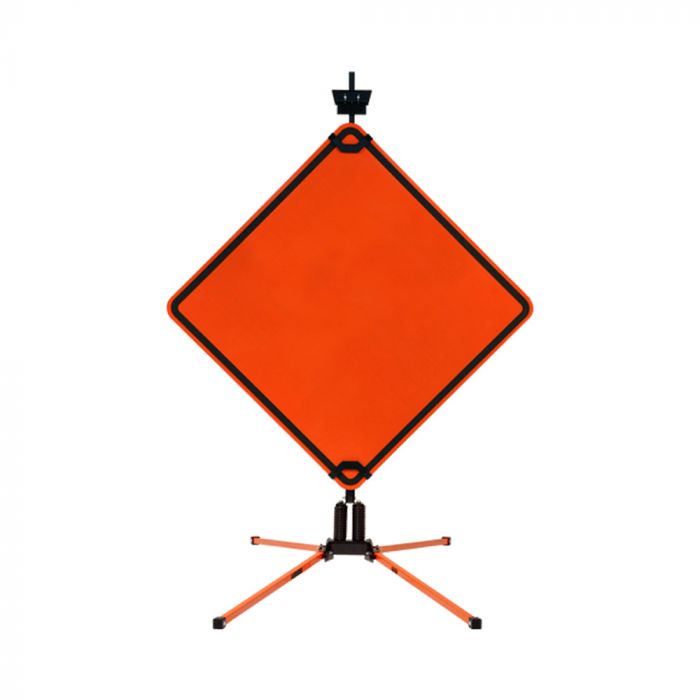

Keep signs visible and upright with a dual spring stand that’s suitable for rigid and roll up signs. Independently adjustable legs provide stability on curbs and uneven terrain. Sturdy, reliable stand for traffic control, work zone entry, road condition changes, and more.
The springless sign stand is the best choice for simple design that’s easy to use, store, and service if necessary. It has one attachment point and anti-corrosion powder-coated legs. Legs are independently adjustable for uneven terrain.
1. Extend telescoping legs until locked in place.
2. Release leg lock mechanism and lower legs to ground.
3. Lift up on center upright until legs lock in place.
4. Insert panel into upright holder until spring button snaps in place.
1. Depress spring button and remove panel.
2. Release leg lock mechanism and raise legs.
3. Depress spring buttons and telescope legs.
The SZ-412-2S is perfect for DOT's, Telco's, Power Utilities, Road Contractors, Underground Utility Contractors & Barricade Rental companies.
Traffic Safety Compliance Saves Lives. SONCO Can Help |
According to the National Safety Council (NSC), 2020 marked a 16-year high in work-zone crashes. The year saw 102,000 accidents, which claimed the lives of 857 people and injured an additional 44,240. |
Road Safety Equipment Minimizes Traffic Hazards | SONCO |
With SONCO road safety equipment, you can act fast when threats arise. With our help, contractors and law enforcement officers set up high-visibility signage and construction barricades that slow or redirect traffic around obstacles. |
Weight | 31.000000 |
---|---|
Height | 58” |
Teste Available Upload Later Image | No |
Color | Orange |
Certifications | NCHRP-350 |
Dimensions | 7”x 11.25”x 58” |
Material | Powder-coated steel |
Compliance | MUTCD |
Storage | 2.15 cubic ft. |
Latch | Universal Bracket |
Certifications | MUTCD; NCHRP-350 |
Pallet Quantity | 640 |
